HandySaw is intended to facilitate the job for people who work
with nonlinear editing (NLE) software.
To accelerate the digitalization process the source material is usually captured as one or several large pieces, operate with such source files can be rather difficult. Instead of one long clip it is desirable to have a set of short clips, each one containing one single "scene" (e.g. from the start to the end of recording).
This is the task that can be accomplished by HandySaw DS.

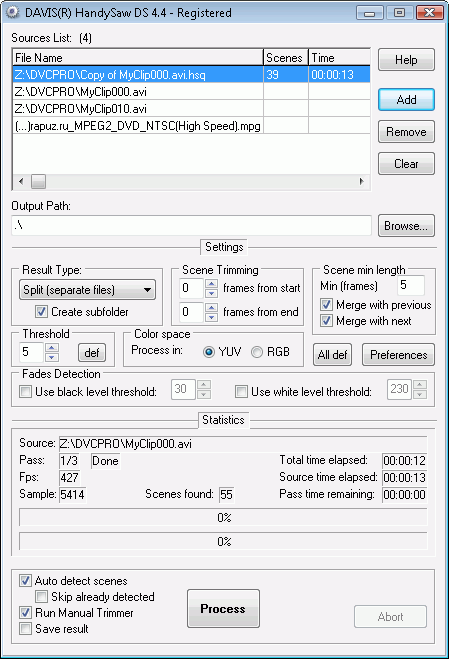

HandySaw DS is a Powerful
Automatic Optical Video Scene Detection Tool.
Video scenes detection
HandySaw DS offers two methods of scenes detection in the videofile:
- Optical. The program parses content of the videofile, finds scene changes and divides the initial video into separate scenes. For this analysis only videostream data is used; timecodes or any other information are not required. Of course 100% correct results cannot be guaranteed but, on the average, it is rather high.
Also thus there is an opportunity to detect very dark and very light frames as a separate scenes.
- By the date of shooting. Cameras of DV standard and the standards based on DV (DVCAM, DVCPRO), during the shoot saves time and date of shooting of each frame of video on a tape. Then if video is transferred in a computer via digital FireWire interface this information is saved in the videofile. If HandySaw finds it then search of scenes is fulfilled with usage of these data. In this case accuracy of detection makes 100 % under condition of absence of a spoilage in initial video.
Supports many video formats
Due to use MS DirectShow API HandySaw DS is capable to process the big number of formats of videofiles - AVI, MPEG, MOV, etc. Basically it can process any videofile for which there are corresponding DirectShow filters.
Works in YUV or RGB color space
Scene detector can works in YUV or RGB color space. The user can choose.
Many formats of presentation of result of splitting
HandySaw DS offers a wide range of variants of representation of the information of splitting into scenes:
- Copying of each scene in a separate file using internal routines
- Copying each scene in a separate file by ffmpeg software
- Copying each scene in a separate file by VirtualDub software
- Final Cut XML
- Libraries in format PLB and PSQ for Adobe Premiere
- EDL file for Sony Vegas
- CMX3600 EDL
- EDL file for EDUIS
- Edition list in the HTML format
- Besides this it is possible to create new type of result, having written a plug-in for HandySaw...
Support of plug-ins of result generation
In corresponding section of the help there is a full information for the developer of plug-ins.

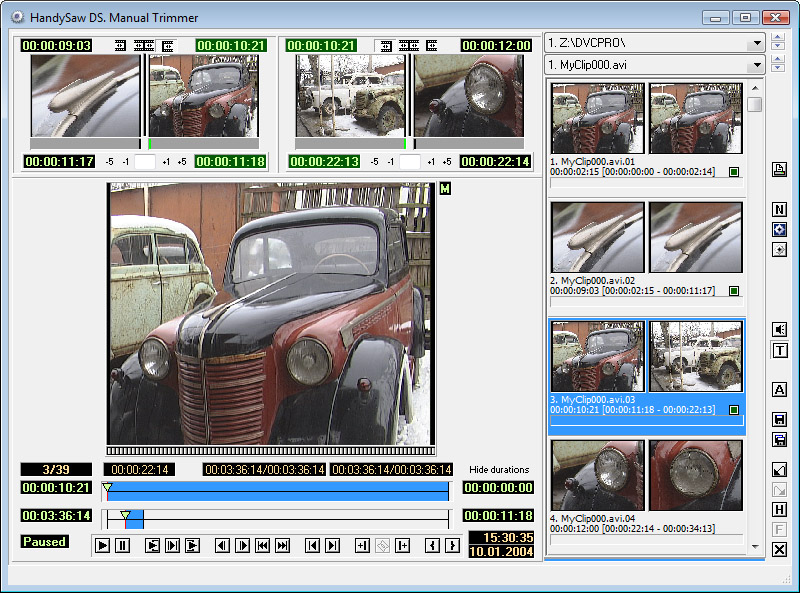

The powerful tool for manual editing - Manual Trimmer
In addition to automatic partitioning there is Manual Trimmer tool which allows you:
- To check up a correctness of automatic partitioning on scenes.
- To delete unnecessary scenes.
- Precisely to cut off any scene.
- To splice two scenes.
- To divide a scene in the defined place on two.
- To give names to scenes.
- To enter comments to scenes.
- To place the unnumbered markers which will be accessible in Adobe Premiere.
- At any moment to save the current information in HSQ the file.
- To convenience of the user mechanism Hold/Fetch and 99 levels Undo/Redo are accessible.
Thus, automatic partitioning on scenes in a combination with Manual Trimmer allows fast and convenient to prepare the initial material for editing in the videoeditor
Copying of each scene into separate WMV file without recompression
If source video - a WMV file, HandySaw DS can save each found scene into separate WMV file without recompression.
Copying of each scene into separate AVI file with recompression
You can save each scene in separate AVI file and at the same time video and audio can be recompressed by the codecs chosen by you.
Copying each scene into separate MOV file without recompression
You can save each scene from QuickTime source to separate MOV file without recompression.
Copying each scene into separate file of the same format with or without recompression using FFmpeg software
HandySaw can copy each scene in separate file of the same format without recompression using FFmpeg software. Also it can recompress media to another format. It is possible for almost any video file format.
Batch mode processing
You can set the list of files for processing and HandySaw DS will process all of them by turns.
Support of a command line interface
The powerful command line interface allows to organize any scenario of use of HandySaw DS.
Creation and printing of reports on splitting
You can create the report on splitting a videofile, print out it on the printer or save in sequence of BMP files by means of tool Clip Sheet.
Possibility of easy localization of the program
Because all the significant symbolical strings, used in the interface of the program, are in a separate text file, to translate the program to other language is rather simply. Initially there are an English and Russian language packages.
Output data format
HandySaw DS can generate these types of result:
- Split (separate files) - in this case HandySaw DS copies each retrieved scene in a separate media file. Depending of settings copying may be with or without media transcoding. If Create Subfolder item is marked, a subdirectory with name "FIlename.Scenes" will be created and all scenes will be saved in it. If the source video and result are located on one disk, resulting audio files will be saved in the audio drive you indicated (in the Preferences) in the appropriate directory. If source and output disks are different, audio is saved near to video.
- Simple List - the result is a text file,
in which the frame numbers of the beginning and end of the scenes are listed.
Each scene is in a separate line.
- Compatible PLB - HandySaw DS creates an
Adobe Premiere Library (.PLB) file, where to each retrieved scene there
corresponds one clip referring to the initial videofile. In addition there
is a clip containing all initial video. This clip may contain the unnumbered
markers, marking each scene start. In Adobe Premiere (further AP) it is
possible for version 5 to simply open the .PLB file and import it into the
project. In AP 6+ you have to import the .PLB file into an existing project!
The file format is compatible with AP as much as possible. For AP 6+ use PSQ 6 instead.
- Usage PLB - with this option a PLB
file is created also, but its format slightly differs from previous. It has some
advantages and disadvantages.
On the one hand — in the project window in the "Usage" column
there is a correct value of how many times this clip was located on timeline.
In "Compatible PLB" all this statistics is displayed only for last,
complete clip referring to all video.
On the other hand — Project Trimming function do not work
correctly. It is impossible to use it. For AP 6+ use PSQ 6 instead.
- AP 5 PSQ - PSQ file - Adobe Premiere Sequence
in Adobe Premiere 5 format.
- AP 6 PSQ - PSQ file - Adobe Premiere Sequence
in Adobe Premiere 6 format, can contain comments of the user. PSQ 6 files
can be imported in Adobe Premiere Pro.
- Vegas EDL - text file in EDL format which can be opened in Sony Vegas program.
Further in the list all result generation plug-ins installed in your system are listed. In standard package there are:
- CMX3600 EDL.js - file of EDL CMX3600 format is created. It is compatible with Adobe Premiere Pro
- Edius EDL.js - EDL format file compatible with Canopus Edius is created
- Final Cut XML.js - creates FinalCut XML file that describes sequence with input file splitted on clips by scenes. It also contains scene comments and markers. Many editing systems now supports Final Cut XML format importing.
- HTML EDL.js - the edition list in the HTML format is created
- Split by VirtualDub.js - the script .SYL for VirtualDub is created. During execution of created script VirtualDub copies each scene of source AVI file in separate AVI file without recompression.
Major innovations in version 4.6
Trimmer user interface has been improved
It has become much more responsive. Now preview images in scene list can be freely resized. Resizing now much more smooth and fast.
Scene redetection tool has been extended
Settings for scene trimming and merging have been added. Window now also is resizable.
Thumbnail extraction engine has been improved
Now you will see more rarely the yellow rectangle, meaning it was not possible to extract a desired frame, thus nearby frame is shown instead.
HandySaw includes the powerful tool for manual
video trimming - Manual Trimmer .
In order to
use HandySaw DS the following conditions are necessary:
- Windows Operating System
- Intel Pentium CPU or above
- Microsoft DirectX 8.1 or above
- DirectShow filter WAVDest.ax (for
usage of the Split mode on systems with separate storage of video
- Microsoft Windows Script Control
- Windows Media Format Runtime (to operate with WMV files)
History of changes
- Trimmer user interface has been improved, it has become much more responsive
- Now preview images in scene list can be freely resized
- Thumbnail extraction engine has been improved
- Scene redetection tool has been extended by adding settings for scene trimming and merging
- Scene redetection tool window now also is resizable
- Properties FrameType, AspectX, AspectY and IsExtInfoValid added to SDK
- Final Cut XML.js plg-in has been updated to version 1.80: format compatibility has been improved by using of new properties of SDK
- HSQ files format has been changed, now version 4
- Shell context menu item now added to .MXF too
- ffmpeg и lavfilters have been updated
- Several other minor improvements and fixes
- Ability to finely configure a process of selection of DirectShow filters for use by application was added
- LAV Filters included in installation package and used without installation in system
- Thumbnail extraction engine reworked and improved
- DirectShow splitting engine totally refactored
- Debug logging system optimized
- Processing of video when frame width is not multiple of 8 fixed
- "Final Cut XML.js" plug-in updated to be compatible with Adobe CC
- "Export scenes with markers to files" command added to Trimmer
- Compatibility with LAV filters improved
- Export To File from Manual Trimmer now processes all marked scenes
- Wavdest DirectShow filter now included and used when necessary without installation in system
- Added FFmpeg Splitting Engine profile that copies media starting from nearest previous video keyframe
- All Split engines now save scene name and comment to file as metadata
- Scene name and comment now saved in file during Export To File from Manual Trimmer
- Compatibility with 3rd party DirectShow filters improved
- FFmpeg updated
- Vertical scaling in scenes redetection dialog of Manual Trimmer added
- Taskbar progress indication in Windows 7 added
- Manual Trimmer video playback engine improved
- Minor fix in frame-timecode conversion routines
- Numerous minor improvements and fixes
- QuickTime splitting engine added
- FFmpeg splitting engine added
- "Split by ffmpeg.js" plug-in removed
- Mpegcut.dll usage removed
- Self-tuning added to thumbnails retrieving and Manual Trimmer positioning routines
- Scene margins support added to Split result
- SaveToTextFile method added to SDK
- Lang property added to SDK
- When HSQ file loaded and media file is missed user asked about new file location
- Cut list import in Manual Trimmer added
- Now comments are appending instead of assigning in Manual Trimmer
- Debug capabilities extended
- Online new version checking added
- Max value of scene trimming increased to 999
- Interface font changed to TrueType "Microsoft Sans Serif"
- "Break in timestamps enough for new scene start" parameter added
- RGB to YUV conversion internal routine added
- YUV colorspace now is default
- Several minor improvements
- Windows Vista compatibility improved
- Several scene naming templates added
- Several user interface design changes
- "Split by VirtualDub.js" plug-in improved
- "Split by ffmpeg.js" plug-in improved
- Now plug-ins can have adjustable by user parameters
- Thumbnails retrieving routines rewritten
- Some core routines rewritten
- Saving of each scene of a WMV file in separate WMV a file without recompression is added
- You can choose how many thumbnails per scene Manual Trimmer shows in scenes list
- Several bugs was fixed
- Bugs tracking system is added
- Support of plug-ins of generation of result is added
- Recognition of "black" and "white" scenes is added
- Scene detector can work in YUV color space
- Work with MPEG2 files is improved
- Choice of codecs for video and audio recompression
- Saving of each scene of a MPEG file in separate MPEG a file without recompression
- Adjustments of parameters of creation of AVI files are added
- Fine adjustments of parameters of MPEG files reading are added
- New tool - MPEG Filter Test
- The choice of the renderer filter is added
- Multilanguage support is added
- Procedure of video processing actions choice is changed
- Interface of Manual Trimmer is slightly changed
- The out-of-date control elements are removed
- The global menu in Manual Trimmer is added
- The type of result Vegas EDL is compatible with Vegas version 5
- New parameters of a command line are added
- Manual Trimmer is optimized
- The new type of result - Vegas EDL is added
- If video contains the information on time of shooting it is
displayed in Manual Trimmer
- In the processing log-file the method of scenes detection for
each processed file is displayed
- The bug, resulting to that sometimes video was recognized optically
even if there was an information on time of shooting in the file,
- The report generator - Clip Sheet is added
- The mechanism of optical redetection of scenes is added
- Scene naming templates are added
- Possibility to process video of the Windows Media format
- The format of HSQ files is changed - now version 2
- Possibility to speed up optical recognition of files of some
formats at the expense of usage of video of the reduced quality
- The algorithm of ignoring of flashlights is added
- Search of scenes on time of shooting is added
- Manual editing of scenes - Manual Trimmer tool
- In Split mode the information about timecode of initial video
- The type of result - PSQ 5
- The type of result - PSQ 6
- Own HSQ file format
- Two errors in the mechanism of copying AVI of files in Split
mode are corrected. In rare cases they resulted to that resulting
files could not be played back.
- Usage of Microsoft DirectShow API and consequently abbreviation
DS has been added to a program name
- The support of AVI Type 2 — files more than 1 Gigabyte
- DV files support
- One algorithm for optical recognition of the scenes with an
adjusted threshold of sensitivity
- Batch operation
- Two kinds of PLB files can be created — Compatible PLB
and Usage PLB
- New kind of result — Simple List
- The advanced command line mode
- Correct recognition of audio in separate WAV file
- Correct processing of dropped frames
- Limitation of minimum length of the retrieved scenes
- The date of creation of a source file is assigned to files
created in the Split mode
- "Quiet mode" - the dialogues with error messages
are not output
- The process can set priority of execution
- Possibility of recording of processing errors in the log-file
- Possibility of recording of processing results in the log-file
- Integration with Windows explorer
- Detailed realtime statistics during execution
- The structure of created .PBL file was considerably perfected.
Now project, created with the HandySaw use, can be trimmed (Utilites/Project
- The correct recognition of any values of "Frames Per
Second" of a source video was added.
- The possibility to discard adjusted quantity of last frames
of each scene was added.
- The indexing of the scenes now is carried on in decimal format
instead of in hexadecimal.
- Generated .PLB files are compatible with Adobe Premiere 6
now. It is recommended to import them to the project via File\Import\File.
- Small bug of audio disappearing in long source splitting was
- The opportunity to save each found scene in separate AVI file
was added. Now HandySaw can be used with any videoediting system,
not only Adobe Premiere 5.*.
- NTSC 30fps and 29.97fps support was added.
- The improved algorithm of recognition was added. Percent of
the detected cuts was rather increased.
- The DV mode was added. Very slow. It is sensitive to any distortions
of a picture, accepts them for cuts. The sole mode, which can
be used in DV-systems.
- In the main window of the program the information on an amount
of the detected cuts, elapsed time and scan speed was added.
- The name of a source file can be set with the "Drag'n'Drop" from
Windows Explorer and as program argument at start.
- First issued version of the program. One base algorithm of
scene recognition was realized.
I offer to download and
test this program in operation. Good luck!
